Ultrasonic leak detector
Artikelnummer:TKSU 10
EAN:7316577716446
Hersteller ID:TKSU 10

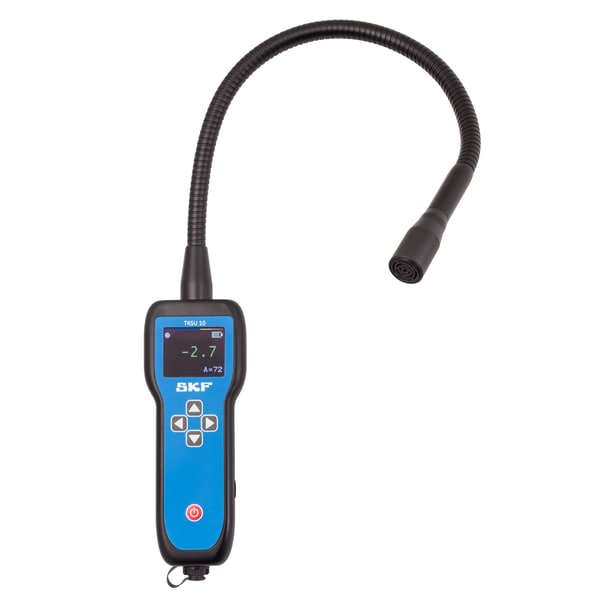

The SKF TKSU 10 is an ultrasonic leak detector that helps users to quickly find leakages in compressed air or vacuum systems. Leakages increase the load on the equipment and result in higher operation and maintenance costs. The TKSU 10 is very simple to use and helps users to easily find leaks from a distance, even in noisy industrial environments, via its ultrasound measurement sensor. The instrument features adjustable sensitivity and intuitive LED display gives guidance for superior leak detection results. The TKSU 10 is designed for use in all industries utilizing compressed air, and it is particularly recommended for paper and chemical industries, as well as workshops with air-driven power tools.
- eClass5ID:
- 23051901
- Autom. Abschaltung:
- Dauerbetrieb, 10 min, Aus
- Batterie:
- 2 x LR6, AA-Alkalibatterien
- Batterielebensdauer:
- 7 h
- Koffermaße (L x H x B):
- 530 × 110 × 360 mm
- Farbe:
- Blue,Black
- Inhalt:
- Instrument;Peltor HQ Nackenbügel-Headset;Sensor;USB-Ladekabel;Schraubendreher;Gummidüse für den Sensor;Bedienungsanweisung MP5480;2 AA-Batterien;Koffer, Größe C
- Display:
- Farb-OLED, 160x128 Pixel
- Schutzart (IP):
- IP 42
- Headsetanschluss:
- Stereo jack connector of 6,35 mm
- Impedanz Headset:
- 230 Ω
- Headsetgewicht:
- 255 g
- Gehäusewerkstoff:
- ABS-Kunststoff
- Instrumentenmaße:
- 158 × 59 × 39 mm
- Instrumentengewicht:
- 350 g
- Measurement frequency:
- 35 bis 42 kHz
- Measurement method:
- Piezokristall
- Measurement range:
- -6 bis +99,9 dB/µV, Referenz 0 dB = 1 µV
- Betriebstemperaturbereich:
- -10 °C
- Betriebstemperaturbereich max.:
- 50 °C
- EAN:
- 7316577716446
- manufacturerSKU:
- TKSU 10
